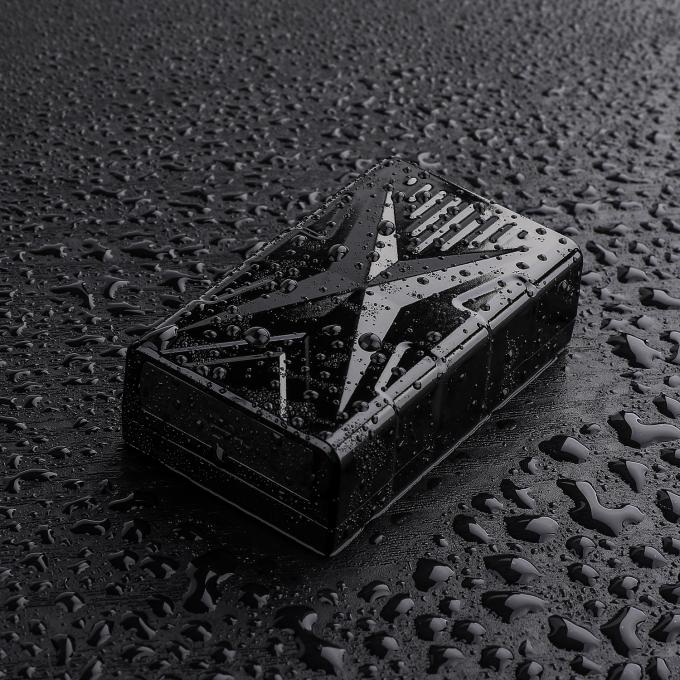

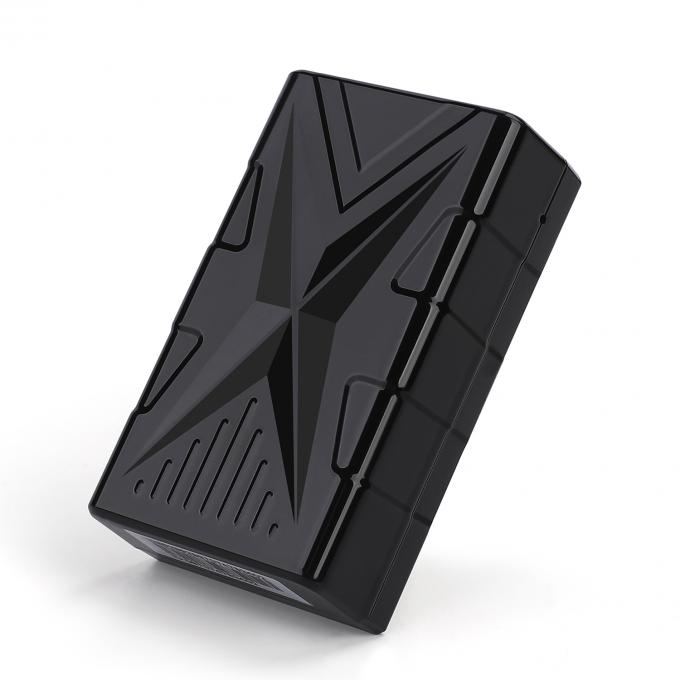

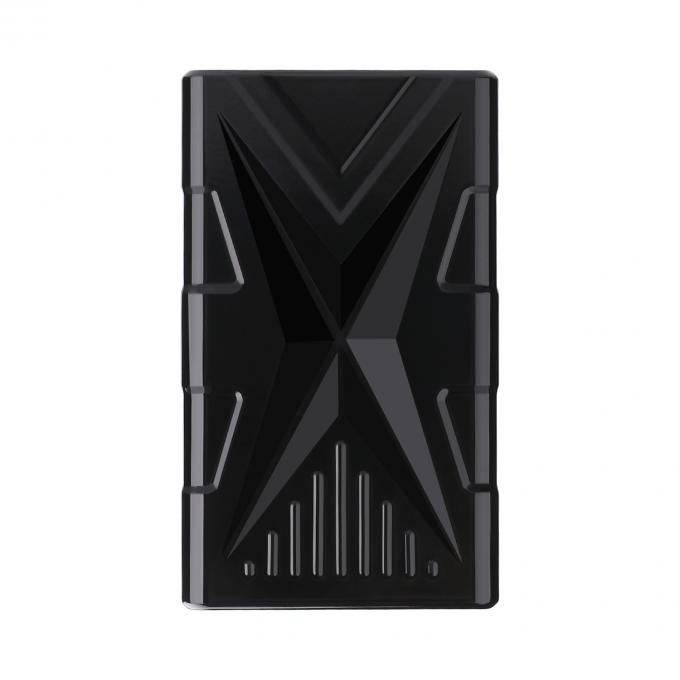

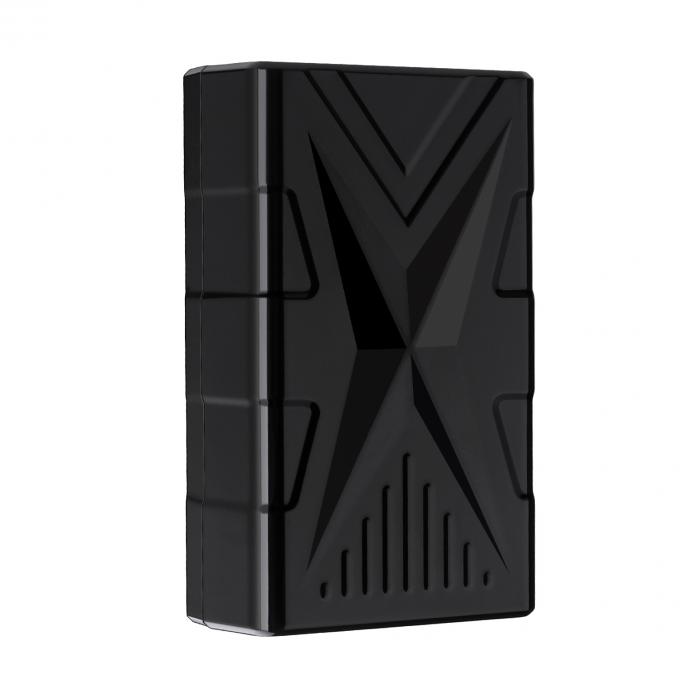

Cxfhgy  Waterproof Vehicle GPS Tracker Strong Magnetic GPS Car Tracking Locator Anti-loss System For Car Burglar Alarm Devices

Magnetic GPS Car Tracking Locator Features:
1.Real-time tracking
2.Historical Track
3.Electronic fence
4.Set (multiple operating modes: safe mode, power saving mode, Super long standby)
5.Device message

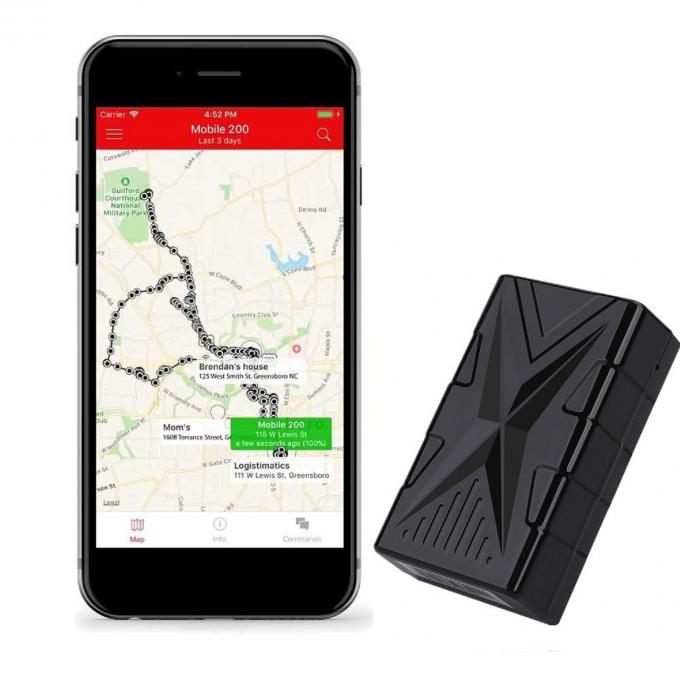

6.Multi platform monitoring: support for Android, for Apple’s mobile phone system, and network client computers

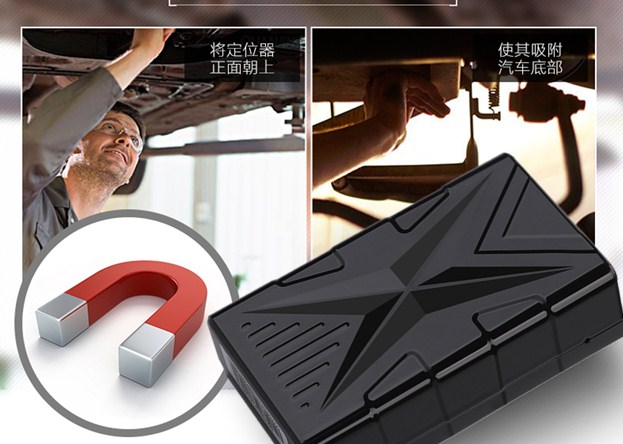

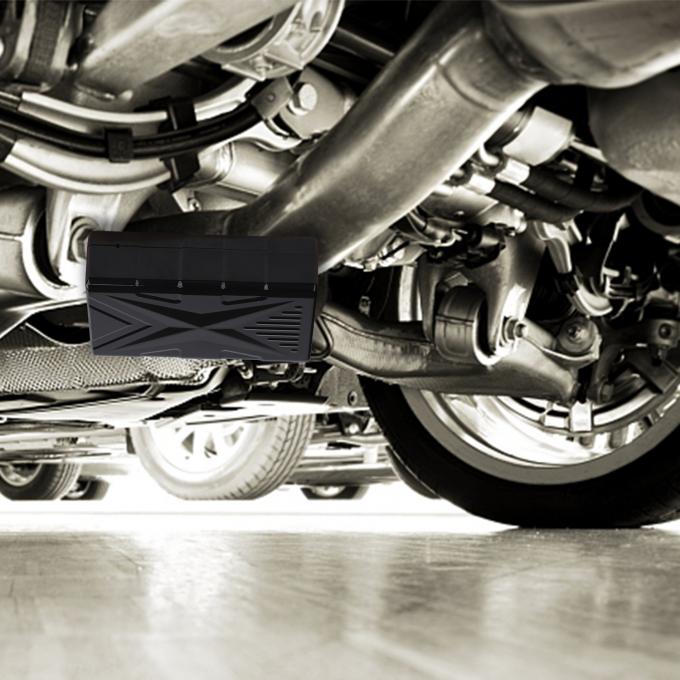

7.Built-in magnetic, free installation and easy to use
8.Alarm to remind

Lamp effect description:
Power: Card blue light indicates power on, GPS signals after lights out
Charge: charging indicator light flashing red light goes out after full
Positioning mode: GPS satellite positioning + LBS + AGPS assisted positioning base station location
Positioning accuracy: GPS positioning 5-15 m
Base station location: 100-1000 m

Specification description
Item specification

Charging voltage DC 5V/1000mA (MICRO USB)
Built-in battery 3400 mAh (3.7V)

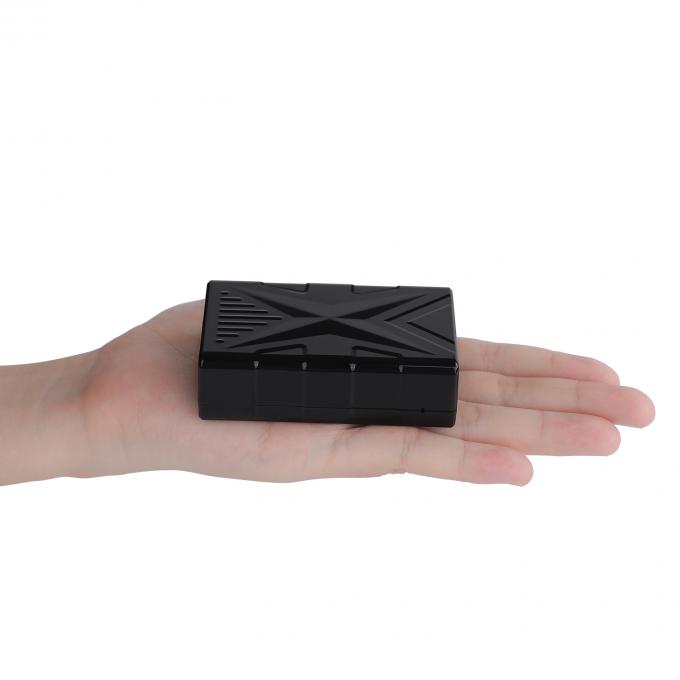

Volume 76 mm × 45 mm × 22mm
Weight 100g (including battery)
Operating temperature -20° to 55° C
Working humidity 5% to 95% Non-condensing
GSM module Quad-band GSM 850/900/1800/1900Mhz
GPS chip UBLOX7020
GPS sensitivity –162Db
GPS frequency L1, 1575.42 MHz
C/A code 1.023 MHz chip rate
Channel 56 channel all-in-view tracking
Positional accuracy 5 meters, 2D RMS
Speed accuracy 0.1 m/s
Time accuracy satellite time 1 microsecond synchronization
Default data WGS-84
Updated by an average of 0.1 sec.
Hot start Average 1 sec.
Warm start on average 30 sec.
Cold start average 32 sec.
Maximum height 18,000 meters (60,000 feet) max.
Maximum speed 515 meters/second (1000 knots) max.
Maximum acceleration less than 4g
Instantaneous displacement 20 m/sec
Standby time 30 days
LED lights 3 LED lights show charging, GPS, GSM status

Magnetic GPS Car Tracking Locator Usage method
Before use, please check the equipment model is correct, the accessories are complete.

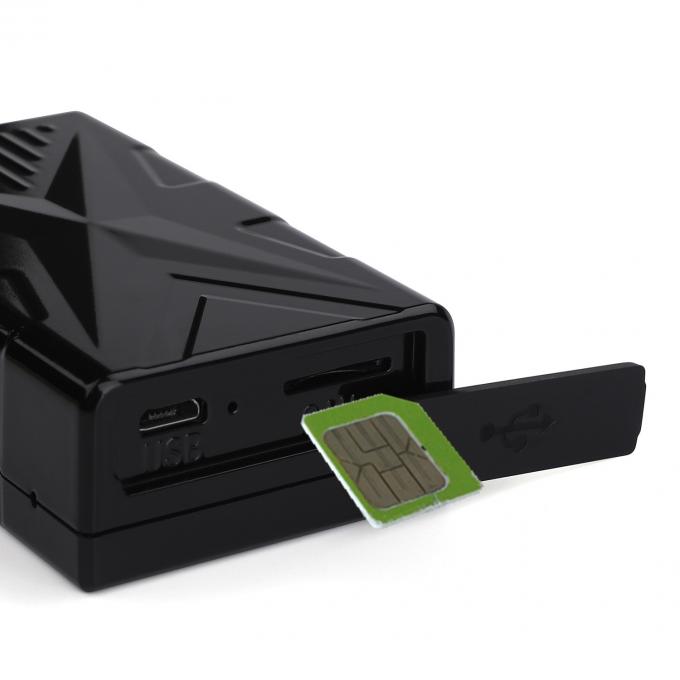

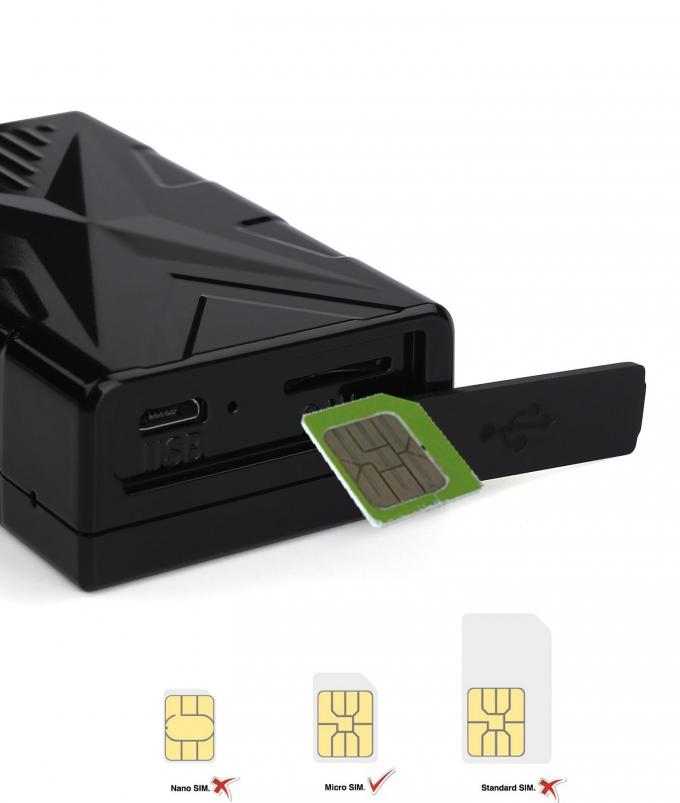

In the shutdown state in accordance with the installation method to support the SIM network GSM card

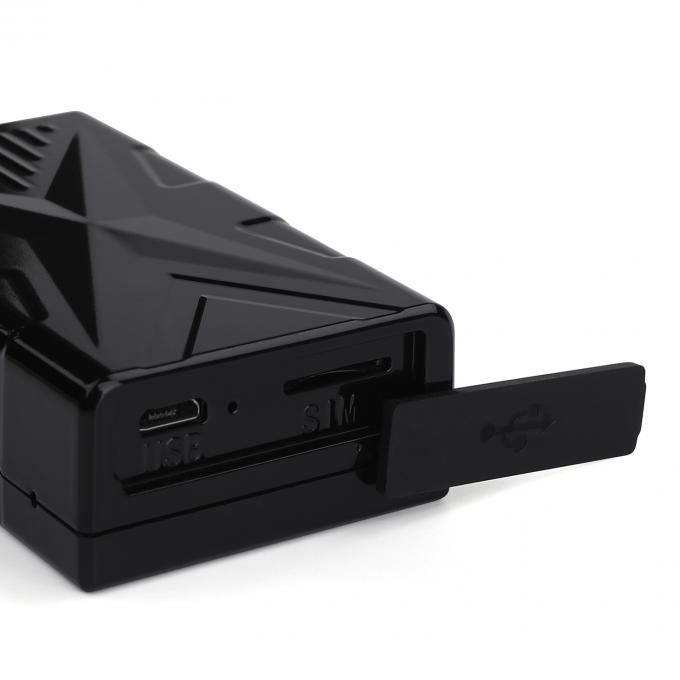

Charge: insert the USB charging line, the link to the output of the standard mobile phone 5V-1A
The charger from power to the full charging time is about 5 hours
Insert the card represent start, remove represent off

Magnetic GPS Car Tracking Locator Specifications:
Material:magnet and plastic
Color:black

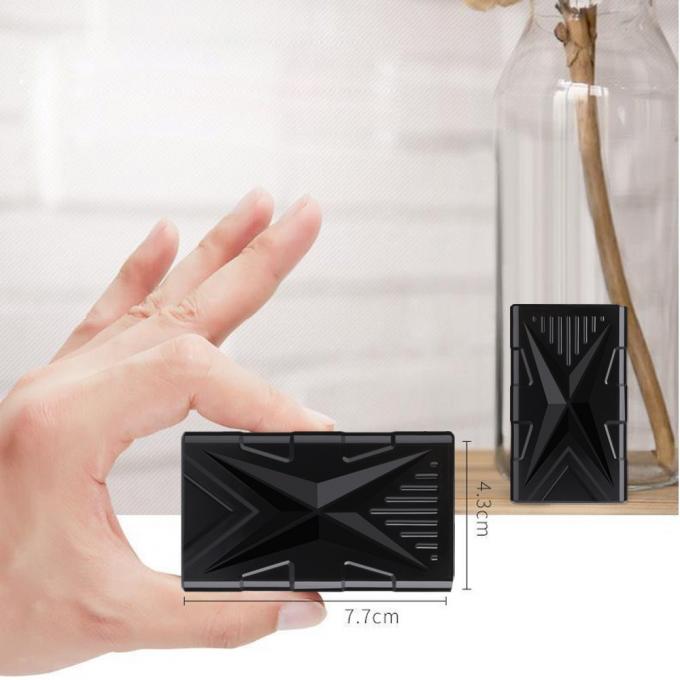

Product size:7.5*4.5*2.5cm
Package size:15.1*9*5.2cm
GPS sensitivity: -159dBm
GPS accuracy: 5m
Battery life: -20 degrees -40 degrees, life 5 years

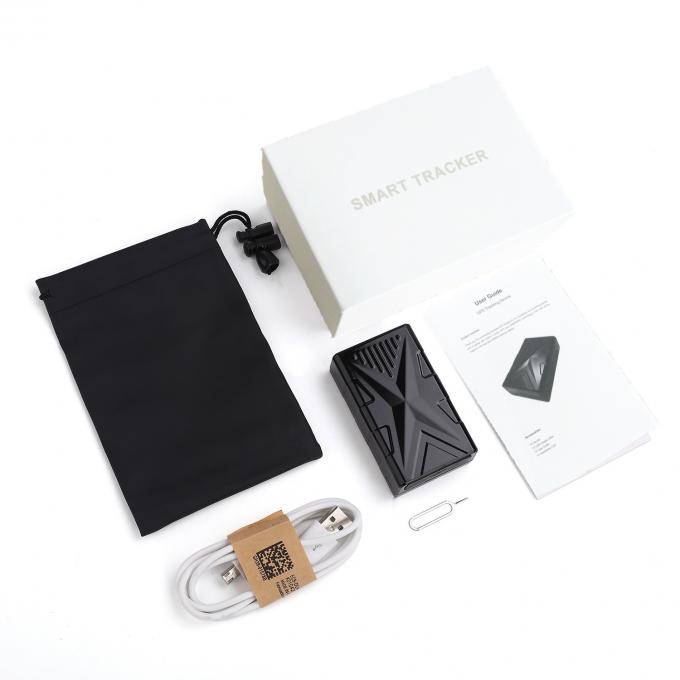

 Magnetic GPS Car Tracking LocatorPackage Included:

1 x Car GPS tracker
1 x USB cable
1 x User manual
